Introduction: The Crushing Core, The Performance Foundation
Mineral processing relies on jaw crushers to change geological materials into useful resources. They are the first step, taking in large pieces of feed and breaking them down into smaller ones for the next stage. The success of an entire processing line, mainly in mining and construction, often depends on the primary crusher which is commonly known as a stone crusher or stone crusher machine. If you don’t understand how it works, you’re just guessing when you try to optimize it. If you don’t know the engine, you won’t be able to make the most of a high-performance car. This article breaks down the working of jaw crushers, giving you the knowledge you need to operate them well and achieve the best results.
In-Depth Analysis of Jaw Crusher Working Principle
At its heart, the jaw crusher operates on compression. It’s designed to mimic nature’s force, squeezing and fracturing material until it yields. Understanding this core action requires a closer look at its components and their mechanical parts.
Structure Overview: Key Components and Their Functions
A jaw crusher, despite its strength, is a fine example of mechanical creativity. All of these elements are necessary.
● Main Frame (Crusher Frame): The Main Frame (Crusher Frame) is the main structure that supports all the internal parts and can withstand strong crushing pressure.
● Fixed Jaw Plate (Fixed Plate): The Fixed Jaw Plate (Fixed Plate) is bolted to the frame and uses its corrugated manganese steel to grip and crush the material being fed.
● Movable Jaw Plate (Moving Jaw): The moving part of the jaw, attached to a pivot, that moves to crush the material. The movable jaw is also made from manganese steel to resist wear. Both of these are called the crusher jaws.
● Eccentric Shaft: In most designs, the eccentric shaft is found at the top of the moving jaw and changes the rotary motion into back-and-forth movement of the jaw. The engine’s eccentric motion is what drives the crushing process.
● Pitman: A large part that links the eccentric shaft to the jaw that moves. The vertical movement of the motor causes the swing jaw to move. It contains important points where the bearings are located for smooth movement.
● Toggle Plate(s) (Toggle Block): Important parts that help with lifting and prevent overloading. They link the pitman to the frame. As the pitman moves, the toggle block(s) become straight and bend, causing the moving jaw to move forward. If something hard gets into the machine, the toggle plates usually break, serving as a fuse. A compression spring is commonly used to hold toggle plates in position.

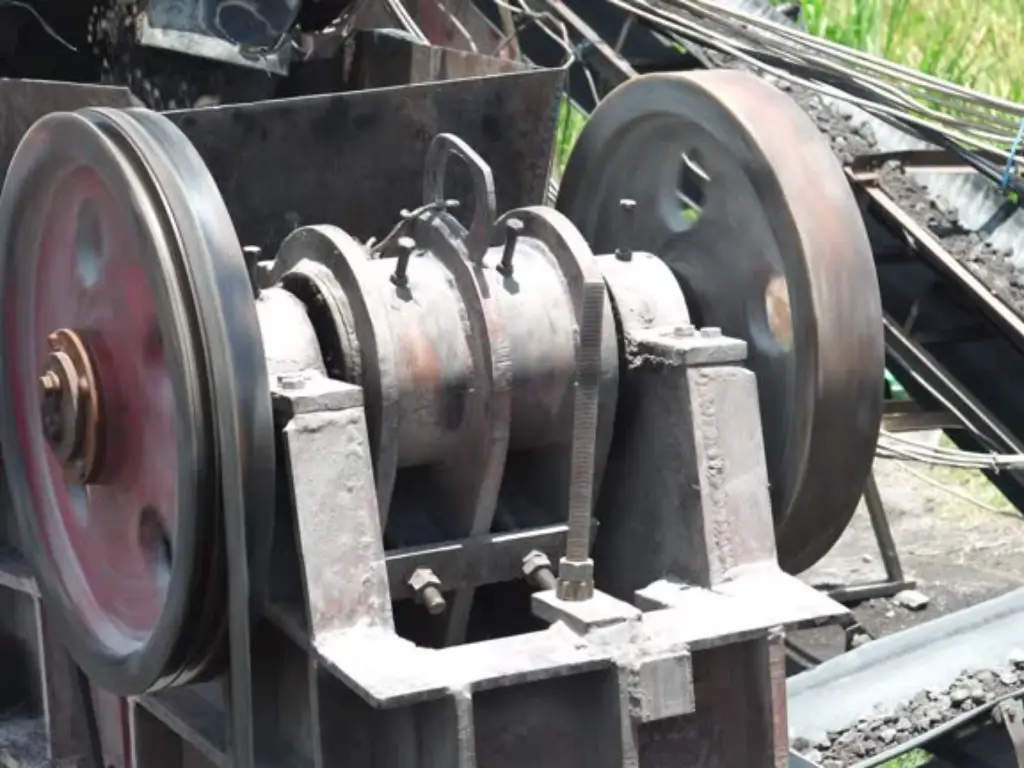

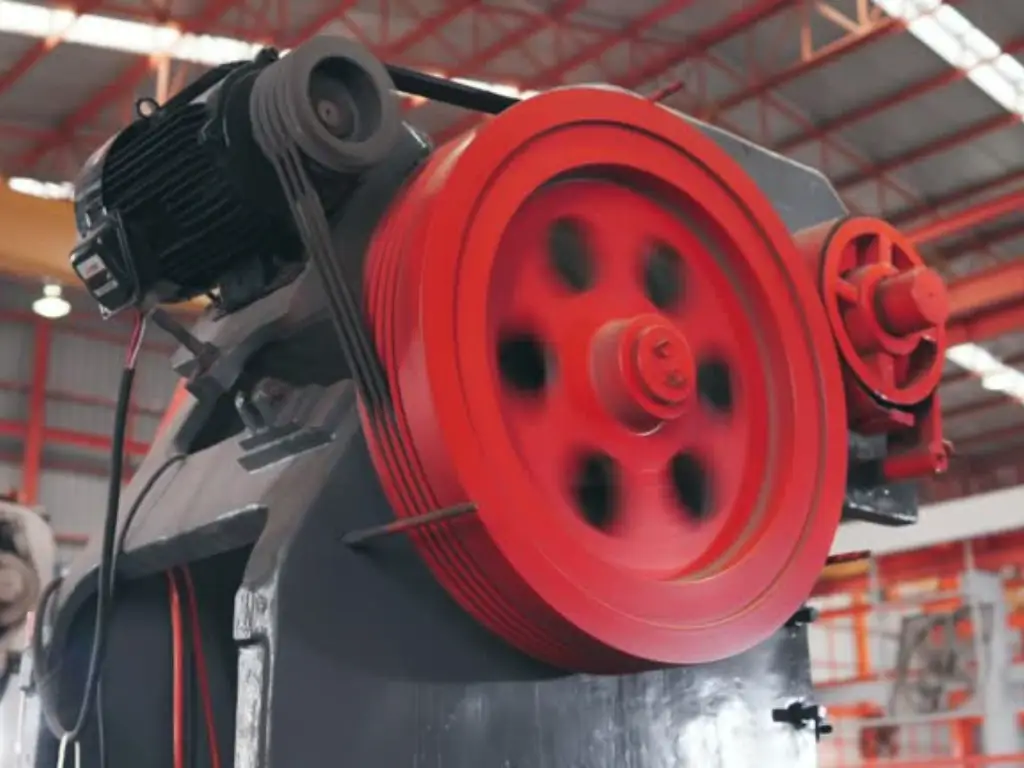

● Flywheels (Ply Wheel): Two large, heavy wheels on the eccentric shaft help store energy so the machine can keep running smoothly, even when processing tough materials. They help the engine move by pushing outward with centrifugal masses.
● Setting Mechanism (Adjustable Wedge System / Adjustable Crusher Settings): This system which can be shims or hydraulics, allows you to control the gap between the crusher plates, affecting the size of the crushed material and ensuring it is smaller.
The Crushing Process: Unveiling the "Compression" Mechanism
1. Feeding the Gape: Material, such as big boulders and a variety of ores, is fed into the top of the crushing zone (gape). The Gape’s formation consists of a fixed and a moving jaw. The V-shaped jaw catches bigger material at the top and guides the smaller material downwards.
2. The Crushing Stroke (Closing): When the shaft eccentrically rotates, the pitman moves down, thus the moving jaw swings to close towards the fixed plate. This is known as the stroke. In this stage, the material between the jaw plates, also known as the ‘crushing plates,’ is under immense/mechanical pressure or crushing pressure. The material is fractured, squeezed, and split. The wedging action is enhanced by the angled surfaces.
3. The Release Stroke (Opening): The eccentric shaft continues to rotate which moves the pitman upperwards. This action pulls the moving jaw, thus during this phase, crushing the bailed material. This action is called the release stroke. During this phase, the jaw plate is free to move thus the gap increases affording further crushed material to descend by gravity further down the chamber. In some designs, a wiping action occurs during this phase.
4. Discharge: The material that serves as feed moves down and farther apart from the gapped moveable jaw. Releasing jaw stroke enables the breaking jaw, at this time moving, to unclasp jaw plate lowering hole which frees material that has reached the size preset during the jaws opening transitional stage. Control and dispense of material occurs from the opening in segments freely from the frame in controlled size chunks easy for continual processing while gravitational assisted motion is applied. Over-sized material remains for subsequent cycles.
This rhythmic jaw movement ensures continuous processing. High force during the crushing stroke and quick release prevents packing, allowing rapid material flow.
Two Main Types: Single Toggle vs. Double Toggle Explained
Different types of jaw crushers are distinguished by their pivot mechanism and moving jaw actuation which are: Single Toggle and Double Toggle. All of them have different types of compression in constraining movement. Other types of crusher that also exist are cone, gyratory, and impact crushers.
● Single Toggle Jaw Crusher (Overhead Eccentric or Blake Type): The eccentric shaft is mounted above the moving jaw and acts directly on it. The jaw pivots at its bottom. The eccentric shaft will rotate and the top of moving jaw will rotate in an elliptical manner whereas the bottom will arc. This provides both compressive and rubbing action which works well for most materials and is more common due to higher capacity because of quicker action. This is the most common type of jaw crusher.
● Double Toggle Jaw Crusher (Blake Crusher): An embodiment combining features of the two previous ones. The swivel head with the moving jaw is mounted on a fixed top pivot. There are also two toggle plates below, which will be driven by the pitman and eccentric shaft. This results in reciprocal motions of near vertical alignment of strait compression and to rough along the plane movements. Because of these conditions, head rotation is almost vertical meaning lack of rubbing and pure compression and will work best with extremely hard materials and abrasive materials where jaw plate consumption is critical. The other historically known block design method with fixed discharge opening is known as the dodge crusher.
Here’s a quick summary of their key differences:
| Feature | Single Toggle Jaw Crusher | Double Toggle Jaw Crusher |
|---|---|---|
| Eccentric Shaft | Located above movable jaw | Drives pitman, which actuates toggle plates |
| Movable Jaw Pivot | Bottom | Top (fixed) |
| Motion | Elliptical at top, arc-like at bottom; "Nipping and rubbing" | Nearly linear/horizontal; Pure compression |
| Action | Compressive and rubbing | Purely compressive |
| Wear on Jaws | Moderate | Lower (due to less rubbing) |
| Capacity | Generally higher (due to faster action) | Slightly lower (due to slower action) |
| Best for | Versatile, high throughput, general crushing | Very hard, abrasive materials, less fines |
| Complexity | Simpler | More complex mechanism |
Factors Influencing Crushing Efficiency
First comes the understanding possess jaw crushers and the principles governing their workings, then comes the optimization of performance based on several considerations affecting throughput, product quality, and energy consumption.
● Discharge Opening Setting (CSS – Closed Side Setting): The adjustment imposed at this point is pivotal since it controls the final size quantile distribution of the crushed fragments. Spending a small setting yields finer products but decreases throughput band increases wear or power consumption. A larger setting enables higher throughput but yields coarser material. Finding a balance between these values is what matters.
● Feed Characteristics: Nature and characteristics of the material at hand have great importance.
• Hardness and Abrasiveness: The harder and more abrasive the materials are, the greater the crushing plates will wear and the more energy will be used. This is where double toggle crushers often excel.
• Moisture Content and Stickiness: Wet, sticky materials can easily plug the crushing zone reducing its efficiency. Pre-screening or the use of specialized crushing plates in different geometries can help reduce this.
• Feed Size Distribution: Overly large material overloads, while too much fine material passes through uncrushed (“choking”).
● Feed Rate and Distribution: Even, consistent feeding prevents ‘bridging’ and maximizes chamber utilization while reducing wear. Without feeding material, capacity is wasted, while excess feeding results in power surges and choking. Adequate humidity from all bearing points and the main shaft is essential, along with grease, of course.
● Jaw Plate Profile and Wear: Whether the crushing plates are corrugated, square or flat, designs affect the gripping. Used plates decrease effectiveness and cause slippage, decreased throughput, and greater power draw. Regular checks and replacements are paramount.
● Eccentric Speed: There is an effect on power the machine uses per rotation. Greater speeds could be beneficial for num crushing cycles but without checking the other parameters matched, it could increase wear and power drawn along with heightened speeds.
● Power Supply Stability: As mentioned, this is an important aspect to report motor operation. Whether the smoothing variation supplied is applicable or broken is key to unit performance.
Choosing the Right Jaw Crusher: Our Professional Advantage
Choosing the right jaw crusher for your mining operations can be overwhelming, but our expertise makes it simple. At Minejxsc, we don’t just manufacture equipment; we offer smart, tailored solutions that address your specific challenges.
● Understanding Your Needs: Each project is unique, and so are the jaw crushers we provide. Whether you need a robust solution for hard ores or a more nuanced approach for concrete recycling, our engineers assess your materials, production goals, and site constraints. We recommend models that optimize settings for maximum efficiency—ensuring that your investment truly pays off.
● Engineered for Excellence: We pride ourselves on superior craftsmanship. Our jaw crushers feature high-manganese steel jaw plates to guarantee exceptional wear resistance and stability. This meticulous engineering results in consistent crushing ratios, ultimately reducing your operational costs and extending equipment lifespan.
● Partnership Beyond Purchase: With JXSC, your journey doesn’t end at acquisition. We offer full lifecycle support including expert installation, training, and proactive maintenance. Our commitment is to elevate your operations and ensure you thrive long-term, making us not just a supplier but a dedicated partner in your success.
Explore how we can facilitate your path to operational excellence at [minejxsc.com].
Conclusion: Understanding Principles, Driving the Future
It is difficult to optimize a business operation while trying to select a jaw crusher. Understanding the jaw crusher’s investment potential translates into monetized expertise. That is where MineJSC takes over. We are a competent machinery supplier and an industry-leading manufacturer that provides operational solutions through heavy machinery.
Jaw crusher functionality that measures up to customer expectations is what we at MineJXSC persistently strive for. With investment in engineering infrastructure comes the level of quality that guarantees customer satisfaction. Crusher jaws made out of manganese steel translates into our machines outperforming our competitors due to enhanced wear resistance and crushing ratio stability. With every hard material, our jaw crushers outperform the competition. Having the lowest costs of operation and the longest lifespan leads to further cost reduction for the customer, which adds value thanks to strategically crafted designs.
Customer satisfaction is the core of our fundamental pillars. This extends beyond operational hours as our dedicated technical team makes sure to optimally enable sustained jaw crusher functionality while implementing steps that assist in translating concepts to execution. Preventing and attending to the need of parts adds value to the comprehensive service range we provide. Commencing from simple walkthroughs to hands-on commissioning training puts us ahead of competitors and burns the status of a mere partner—where production efficiency becomes smoother.
