We were established as the most specialized mineral processing equipment company since 1985.

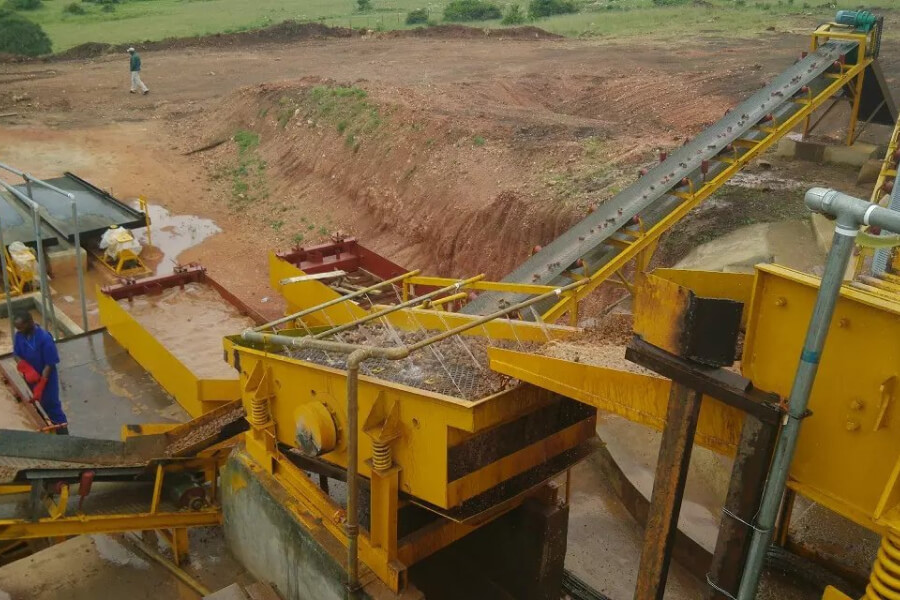

A vibrating screen is a kind of mine classification machine for ore, mine, sand, gravel, coal, slurry. A rotating eccentric wheel powered by a heavy-duty motor is responsible for the rapid movement of the materials on the screen to ensure a thorough separation of materials.
Accumulating decades of vibrating screen manufacturing experience in mineral screening, JXSC vibrating screens vigorously move raw materials across a 80 mesh or 50 mesh screen to separate fine particles or small objects from larger pieces.
Electromagnetic vibrators are responsible for shaking the screens on the equipment to achieve optimal contact of the material to the screen’s surface. Vibrating screens use high-frequency vibrations to separate materials according to their sizes. The inclined screen has an adjustable angle between 0° and 45°, and the vibration can be set as per your request.

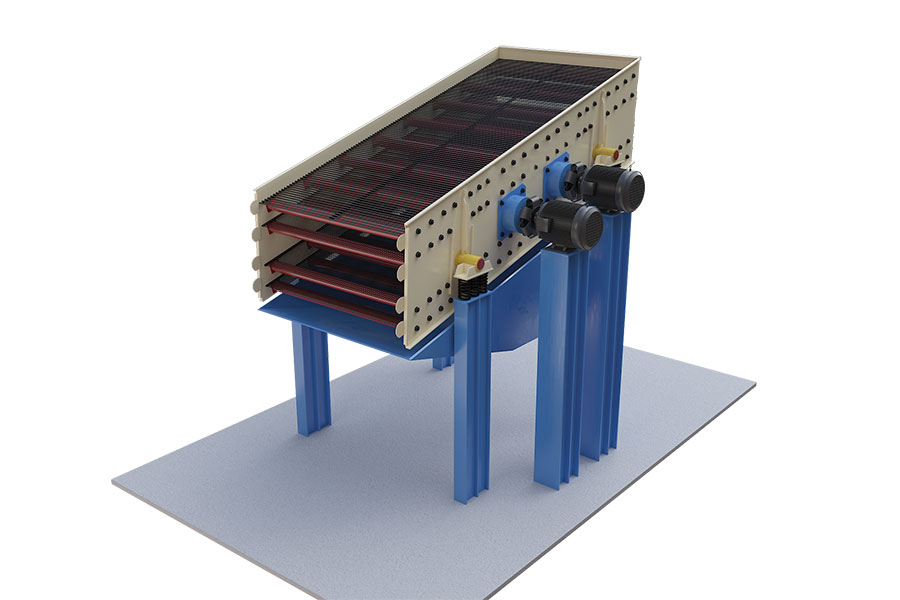

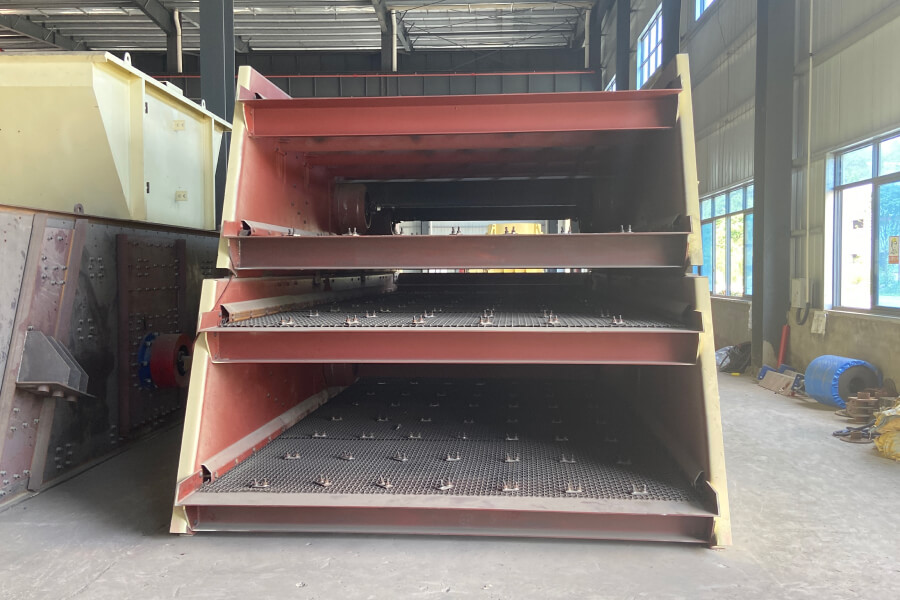

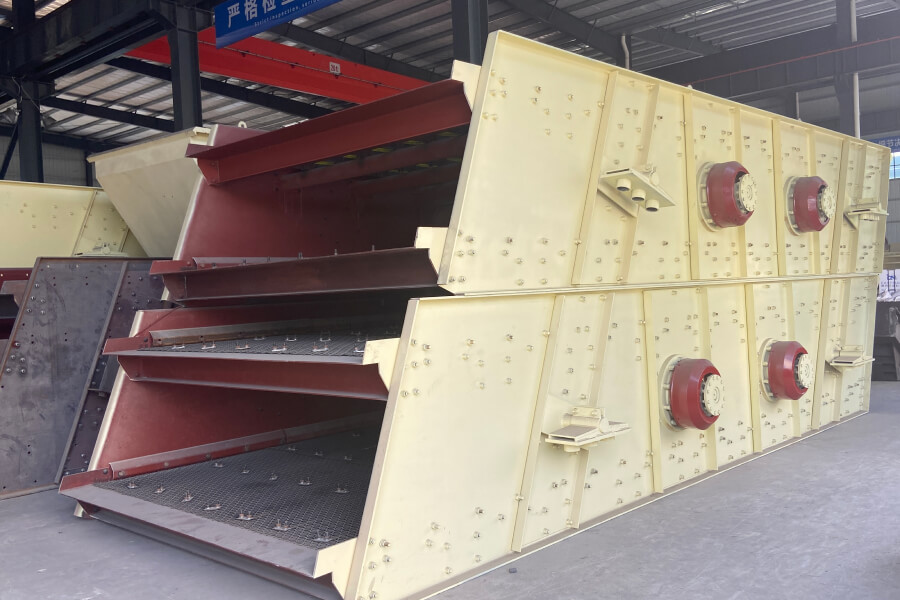

Multi-Layer Screen
Customizable Screen Layer from one to three layers. Up to 4 layer to choose from.
Screen Material + Mesh Size
Customizable steel, nylon, PP material with diamond, rectangle mesh shape.
Rubber Isolation Spring
Longer service life, little noise, stable resonance region.
Eccentric Shaft Vibration Exciter
High quality, stable and continuous performance.
●The material screen drip line is long and has many screening specifications.
●The eccentric block has a strong exciting force.
●Sieve beams and sieve box connected by high strength bolts, no welding.
●Sieve machines have the advantages of simple structure and convenient repair.
●The small amplitude, high frequency and high dip structure means this machine is of high efficiency, maximum long life, low power consumption and low noise.
Vibrating screens move materials through screens while generators apply reciprocating vibration. The inclined screen and high-frequency vibration move the materials along the deck for complete contact on the surface. This process extracts materials to a lower deck based on their size. Multiple decks are used to separate different sizes.
| Model | Layer | Sieve size(mm) | Feeding size(mm) | Amplitude(mm) | Angle(°) | Capacity(t/h) | Power(Kw) |
| 3YK1230 | 3 | 3-50 | <200 | 800-970 | 20 | 12-120 | 5.5 |
| 3YK1336 | 3 | 6-50 | <200 | 970 | 20 | 15-160 | 11 |
| 3YK1548 | 3 | 5-80 | <200 | 970 | 20 | 50-250 | 15 |
| 3YK1848 | 3 | 5-80 | <200 | 970 | 20 | 50-300 | 18.5 |
| 3YK1860 | 3 | 5-80 | <200 | 970 | 20 | 50-350 | 22 |
| 3YK2160 | 3 | 5-100 | <200 | 730 | 20 | 100-500 | 30 |
| 3YK2460 | 3 | 5-150 | <200 | 730 | 20 | 150-700 | 30 |
| 3YK2770 | 3 | 5-150 | <200 | 730 | 20 | 200-800 | 30*2 |
| 4YK1548 | 4 | 5-80 | <200 | 970 | 20 | 50-250 | 18.5 |
| 4YK1848 | 4 | 5-80 | <200 | 970 | 20 | 50-300 | 22 |
| 4YK1860 | 4 | 5-80 | <200 | 970 | 20 | 50-350 | 22 |
| 4YK2160 | 4 | 5-100 | <200 | 730 | 20 | 100-500 | 30 |
| 4YK2460 | 4 | 5-150 | <200 | 730 | 20 | 150-700 | 37 |
| 4YK2770 | 4 | 5-150 | <200 | 730 | 20 | 200-800 | 30*2 |
Depends on your material, feed size, screen size, number of screen deck
12 Months for machine main parts, not include spare parts
The process of dividing them with different particle sizes through the single-layer or multilayer sieve surface with evenly distributed holes multiple times into several different levels is called sieving.
15-20 days depends on model, normally 20 days
Manganese steel wire braid, slotted sieve, polyurethane square hole and polyurethane braid
The number of screen layers generally does not exceed 4 layers, and the screening effect of 2 layers of screens is the best
The working principle is different, the screening accuracy and output are different
It is generally used in rock gold, rock copper and other rock heavy metal mines, and ordinary stone crushing plant and sand making plant.
Make cement base or steel support frame on site
1) The material screen drip line is long, and has many screening specifications.
2)The eccentric block is an exciting force, a strong exciting force.
3) Sieve beams and sieve box connected by high strength bolts, no welding.
4) Sieve machines have the advantages of simple structure and convenient repair.
5)The small amplitude, high frequency, high dip structure, so this machine is of high efficiency, maximum, long life,low power consumption, low noise.
Yes, screen size can be customized according to customer’s request
Screen (woven screen, material: 65 manganese), and spring
We provide the best mine processing solution in the industry. We design our products with performance and efficiency, trusted over the years and recognized by many countries. Let’s get you started.
